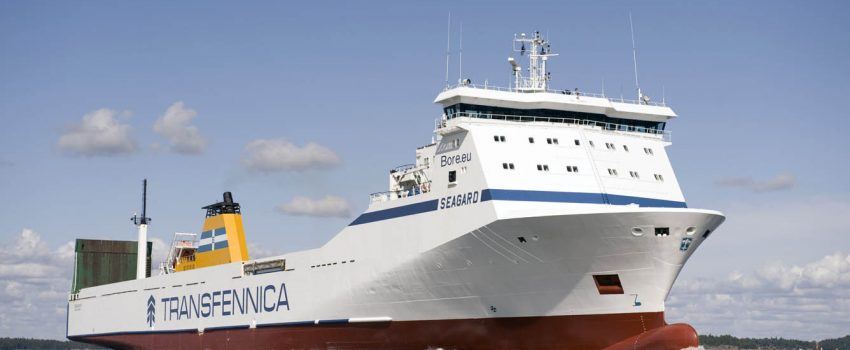

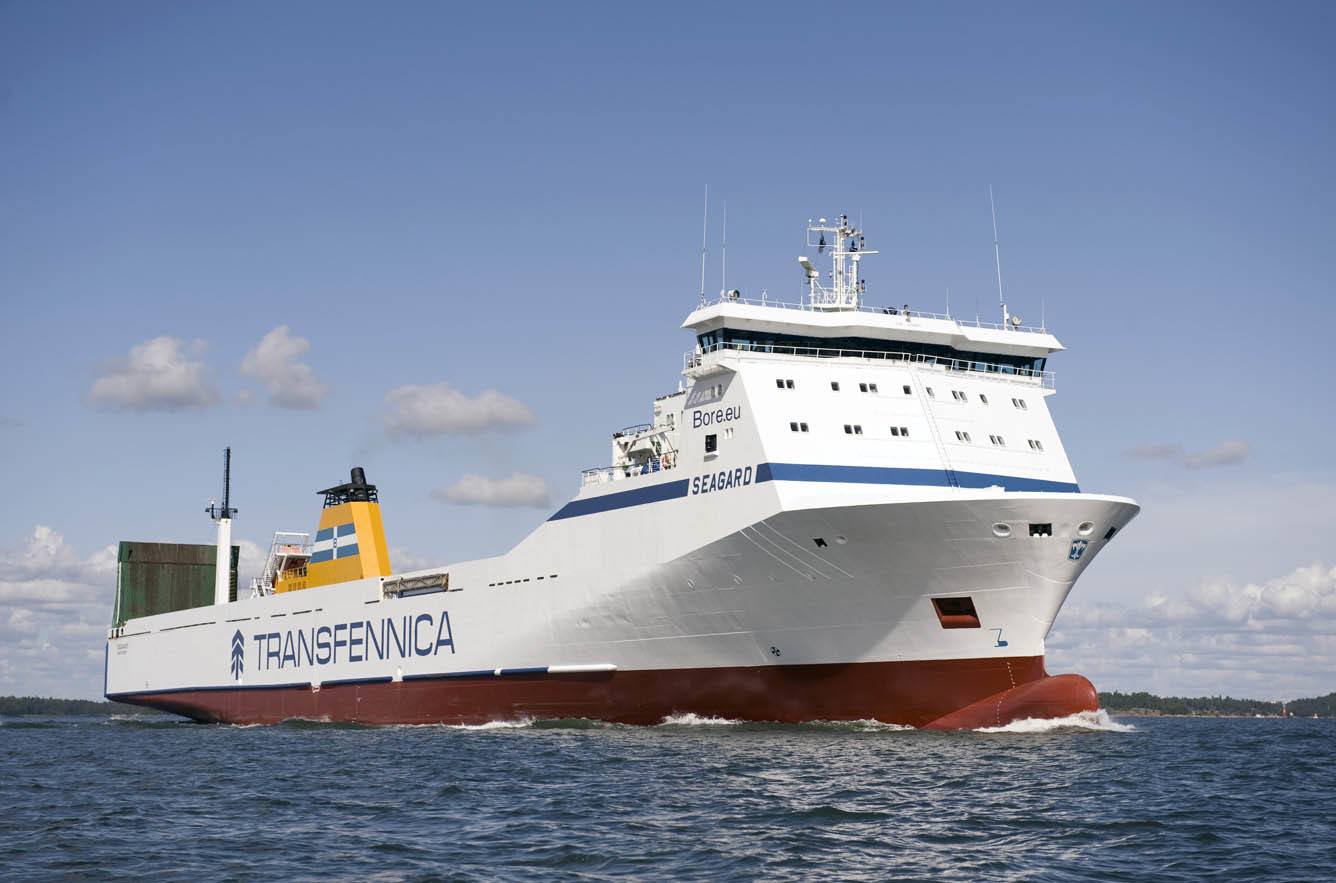

M/V Seagard
Technical data M/V Seagard
| Type | Ro-Ro Cargo Vessel |
| Flag / Port of registry | Finnish / Mariehamn, FI |
| Callsign | OJIW |
| Imo no | 9198977 |
| Built | 1999 Sietas Hamburg, DE |
| Classification | LRS+100A1 Finnish Ice Class 1 A Super ISO 14001 certified 1999 ISM certified 1999 |
| Tonnage | Gross tonnage (GT): 10 488 t Net tonnage (NT): 3 147 t Deadweight (DWT): 7 226 t |
| Main dimensions | Length o a: 153.45 m Breadth moulded: 20.60 m Draft Max: 7.00 m |
| Machinery | 1 x Wärtsilä Vasa, 16V46B, 15 600 kW |
| Service Speed | Full draft: 21.0 kn Trailer draft: 23.0 kn |
| Deck area | Lower hold (excl. ramp) abt: 929 m² Upper hold abt: 1 852 m² Weather deck abt: 2 046 m² Total abt: 4 827 m² |
| Free deck height | Lower hold: 4.60 m Upper hold (exept under upper ramp): 5.00 m Weather deck (under deckshouse): 4.60 m |
| Cargo hold volumes | Lower hold (bale): 4 929 m³ Upper hold (bale): 9 335 m³ Total (bale): 14 264 m³ |
| Lane length (width 3,00 m, excl. ramps) | Lower hold abt: 305 m (ramp) Upper hold abt: 611 m Weather deck abt: 690 m (ramp) Total: 1.609 m |
| Container capacity | On weather deck: 303 TEU or 14 FEU + 21 TEU |
| Ramps | Stern ramps length 14 + 2 m hoistable Upper/lower hold fixed ramp Weather deck fixed ramp |
| Cargo hold ventilation | at port: 30 changes/h at sea: 10 changes/h |
